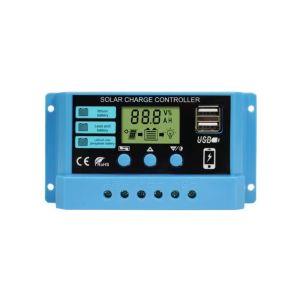

Solar Charge Controller LCD LED Display Solar Cell PWM 12V 24V 10A 30A USB Panel Tenaga LCD Kecerdasan Auto Mengatur Solar Kontroler Pengisi Daya Baterai-Intl

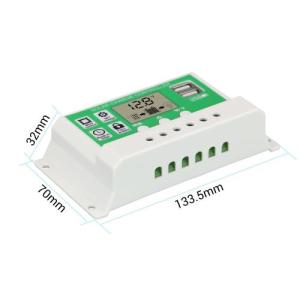

MODELPWM 10APWM 20APWM 30APWM 40APWM 50APWM 60ABattery Voltage12V 24V AutoCharging Current10A20A30A40A50A60ADischarging Current10A10A10A20A30A30AMax Solar input50V(for 24V battery) 25V(for 12V battery)Equalization14.4V(Sealed) 14.2V(Gel) 14.6V(Flood)Float charge13.7V(defaul,adjustable)Discharge stop10.7V(defaul,adjustable)Discharge reconnect12.6V(defaul,adjustable)Charge reconnect13VVoltage of open light    Solar Panel 8V(Light lights delay)Voltage of close lightSolar Panel 8V(Light off delay)USB output5V/3ASelf-consume<10mAOperating temperature-35°C~+60°CSize133.57035mm133.57035mm*all red color voltage X2 ,while using 24V system.Connection:1.Connect the battery to the charge regulator - plus and minus.2.Connect the photovoltaic module to the regulator - plus and minus.3. Connect the consumer to the charge regulator - plus and minus.The reverse order applies when deinstalling!An improper sequence order can damage the controller!
