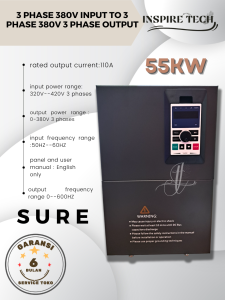

Inverter Frekuensi SURE Drive Konverter 55KW Input 3phase 380V to 380V 3phase Output Variabel Pengatur Inverter Frekuensi

FUNGSI :1. Maju, membalikkan, memulai dan berhenti dikendalikan oleh panel atau terminal eksternal.2. Menyesuaikan kecepatan dengan potensiometer panel atau potensiometer eksternal.3. unit rem bawaan (untuk menghubungkan resistansi rem).4. Fungsi PID (suplai air tekanan konstan).5. Proses multi-tahap.6. Protokol komunikasi RS485 oleh PLC.7. Kontrol vektor, torsi tinggi frekuensi rendah.9. Perlindungan kelebihan beban.Frequency setting mode: digital setting, analog setting, serial communication setting, PID setting and so on.Built-in PID control function, can easily constitute a simple automated control system.Other functions: deceleration stop or freewheel stop, DC brake, automatic reset restart, PLC program control and so on.Provide a variety of fault protection: over-current, overvoltage, undervoltage, over temperature, phase loss, overload and other protection.1.power :55KW;2. rated output current:110A;3.input power range: 320V--420V 3 phases ; 4.output power range : 0-380V 3 phases;5. input frequency range :50HZ--60HZ;output frequency range 0--600HZ;6.mounting hole(MM) 557275 --Bore diameter 10 MM 7. texture: iron shell ； 8. size：582375275 MM 9. size with box: 680490*390 MM 10. net weight/ gross weight: 18kg/20kg 11. panel and user manual : English only📦Paket📦1 x Inverter Penggerak Frekuensi Variabel1 x Manual Bahasa Inggris🌟 barang dicek terlebih dahulu, sebelum dikirim🔥 JIKA ADA KERUSAKAN ATAU PECAH SAAT DI EKSPEDISI, BUKAN TANGGUNG JAWAB KAMI
